Lumped electronic RF-filters

Rf-filter design starts in the same manner than usual filter design:

  • Clarifying specification values of bandwidth, band middle frequency, roll off, rejection, impedance.
  • Find out which kind of filter shall be used: Butter-worth, Tschebischeff, Cauer, Wave, Zig Zag or Parametric filter.
  • To minimize the number of coils, a Parametric filter shout be the first choice .
  • Estimation of pole and zeros and solving the filter equations with a computer software or find the filter values in a catalog.

Filter catalog:

  • [1] ZWEREV, “ELECTRONIC FILTERS” ;
  • [2] SAAL, “THE CATALOG OF NORMALIZED LOW  PASS FILTERS”;
  • [3] H: RÜHL H.H.NGUYEN, “PRAKTISCHER ENTWURF VON WELLENPARAMETERFILTERN”;
  • [4]ECKHARD GLEISSNER , “ZUM ENTWURF VON HOCHFREQUENZ BANDBASSFILTERN”>>, Dissertation TU München - Telefunken- Sonderdruck

Up to this design activity, the design of RF-filter differs not  from the usual filter design, but  the number of electrical components which must solve the characteristic equation, is very limited .This elements are:

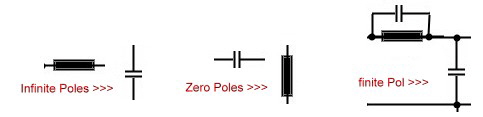

                                        Fig.1 Circuit components to solve filter-roots designing RF-filters

The characteristic equation must be solved, using only this elements to nullify the roots of the equation [1]. At the same time ,expected parasitic values which my appear in a practical circuit, and the coil losses, must be watched. Using series resonators my lead to unacceptable parasitics. A computeranlysis of the circuit will at least show if it really works what has been designed . After that we can simplify the circuit using Norton’s equations watching the appearing component values.This maximum and minimum values in the frequency range from 70 MHz to 1 GHz are:

  • 12 nH <  L < 500 - 3000 nH
  •   0.2 pF < C < 5 nF
  •   Qmin = 20  , Qmax =140



Parametric filter detects corona in molted transformers

The insulation of high voltage transformers usually is measured by watching the DC-leakage current. But in molted transformers the problem of unknown tiny air bubbles exist. This bubbles my create ionization in the captive air.The corona effect may exist in a transformer for years after the high voltage breakdown will happen.The ionization bubbles can be found, watching the MHz leakage current with a scope. But this will lead to lot of mismeasurements due of added radio frequencys.To filter this radio-waves , a proper filter must used. The requirement of the filter is : Fo = 1 MHz, Zin = 1 kOhm, Zout = 50 Ohm, B =100 khz, Fig. 1 shows the measurement circuit, using a sensitive oscilloscope to watch the corona.

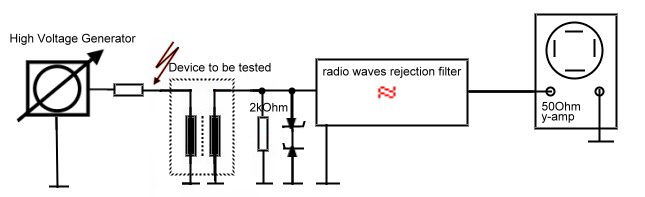

              Fig 1 Corona measurement equipment

The Filter is a transforming parametric circuit using lumped components rare then an OP-active filter which could be damaged from high voltage sparks. Fig.2. Fig.3 shows S21 .

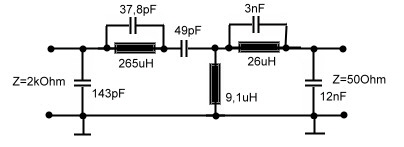

Fig.2 Corona measurement filter

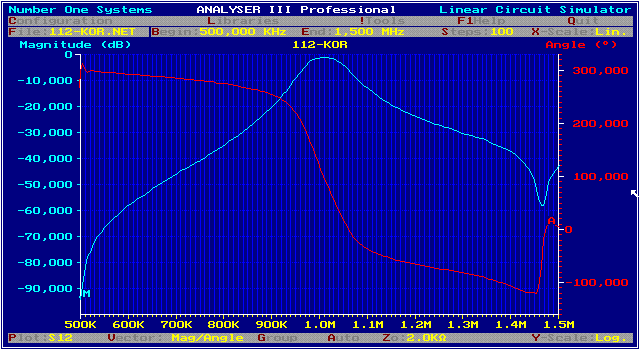

                                                                                               Fig.3 corona measurement filter S12   (Number ONE Linear Circuit Analyser)

Return:



2 Pole parametric IF bandpass matches OP-AMP

The above simple 2 pole parametric bandpass can be modified to be a 10Mhz IF-Filter matched to the OP-AMP in and outputs.The input of the filter has 1 Ohm to fit to the OP-output, whereas the output is resistive matched with a 100 Ohm resistor to fit the Mega-ohm input of OP-AMPs.The series connection of two or three filters between OPs give an high selectivity If-Filter. Fig 1 shows the circuit and Fig.2 the selectivity of one single filter.

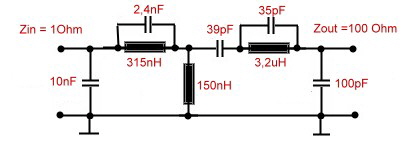

Fig.1 OP-AMP bandpass

opfilcurve

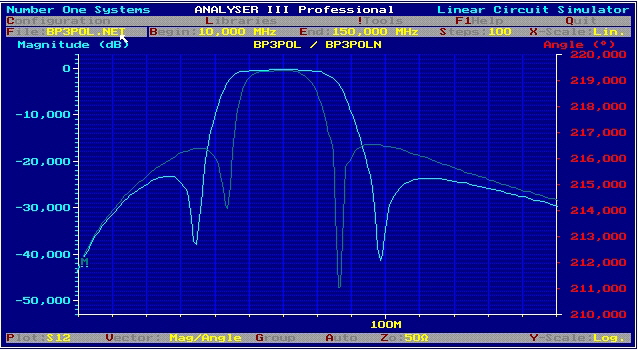

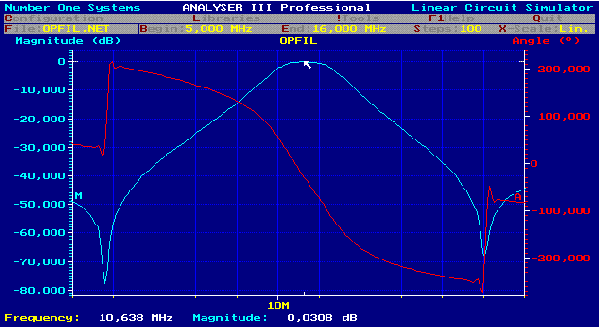

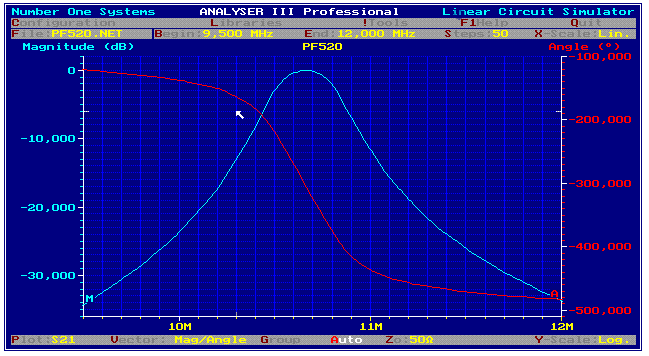

            Fig.2 S21 of op Bandpass                                                                (Number ONE Linear Circuit Analyzer)

Return:



A simple parametric IF-Filter

We get a simple narrow band IF filter  using:

The circuit is gained using Norton’s transformation and matches the output of RF-Amp to a transistor. Fig.1

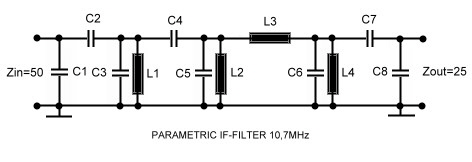

  Fig. 1 IF-Filter 10 MHz

  • C1 = 200 pF; C2 = 100 pF; C3 = 400 pF; C4 =1 2 pF; C5 = 560 pF; C6 = 200 pF; C7 = 200 pF; C8 = 2 pF; L1 = 450 nH; L2 = 430 nH; L3 =4 000 nH; L4 = 1014 nH;
  • C1, C8 and  L3 are problem less components and may be fixed SMD-components.
  • The parasitics at this frequencies are uncritical

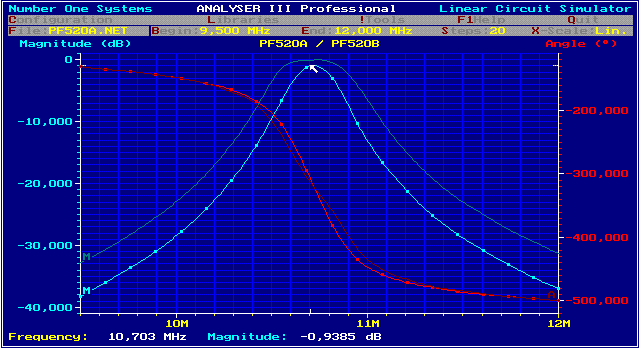

Fig. 2 Simple IF-Filter                                                                                      (Number ONE Linear Circuit Analyser)

Bandwidth switch able If-filter

To enhance the selectivity in a receiver, it is often help full to decrease the bandwidth with a switch. Fig.1 shows a IF-filter having two bandwidths. The switches can be a small coaxial relays. Their little parasitic capacitors will not affect the function of the filter to much, because on their nodes are big capacitors of 400 pF:

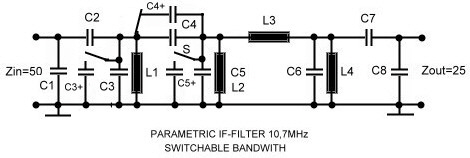

Fig.1 Double bandwidth if-filter

The component values are:

  • C1 = 200 pF; C2 = 100 pF; C3 = 400 pF(+10 pF); C4 =15 pF (-7 pF); C5 = 555 pF (+5 pF); C6 = 300 pF; C7 = 2000 pF; C8 = 2 pF; L1 =440 nH; L2 = 430 nH; L3 = 4000 nH; L4 =1014 nH;

               Fig.2 S12 of the double bandwidth filter                                                (Number ONE Linear Circuit Analyser)

Retour:

DVB-Covering Filter

Outside band signals my disturb the digital television DVB especially at the upper frequencies of 800 Mhz. To reject this unwanted signals, a DVB-Covering filter was developed. We get a practical circuit using a the following parametric filter:

  The circuit shows Fig 1 and is developed using a parametric filter software and Norton’s transformation.

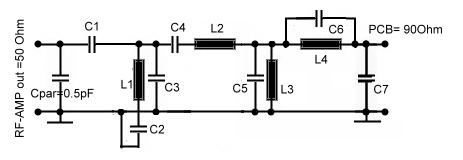

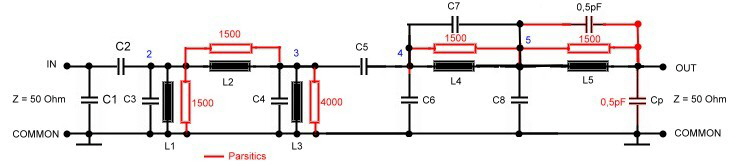

 Bild 3 DVB-Covering Filter    !!! Z=50Ohm

  • C1 = 0,5 pF; C2 =10 pF; C3 = 2,2 pF; C4 = 1,5 pF; C5 = 2,4 pF; C6 = 0,5 pF;
  • C7 = 0,5 pF; C8 = 1 pF; Cpar.= 0,5 pF
  • L1 =15 nH; L2 = 20 nH; L3 = 160 nH; L4 = 18 nH;   L5 = 11,6 nH;
  • C -Values are CAD-values, in a practical circuit, the measured parasitic values must taken into account



PF341plt

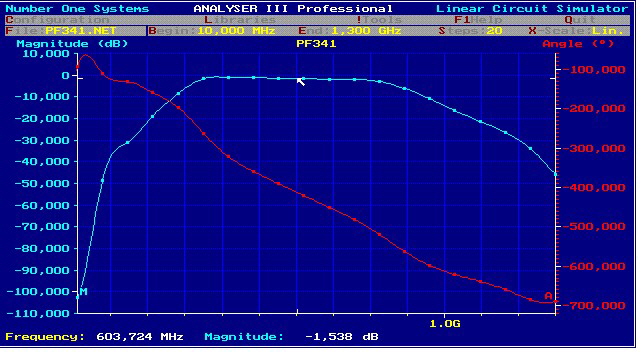

                                           Fig. 2 S21of  Pf341                                   (Number ONE Linear Circuit Analyser)

  • Frequency band = 400 MHz to 800 MHz

Retour:

1 GHz Mixer-output filter

A Mixer must work into some resonating device to gather the wanted mixing products. A small filter can do this job, but it must be properly matched. We use:  and find the circuit of Fig.1 where the parasitics do not affect the function as Fig.2 shows. The low output coil in a practice circuit is only a small path on the PCB and is calculated with a Q of 20. The black component values are computed values.The PCB -capacitors must be subtracted.

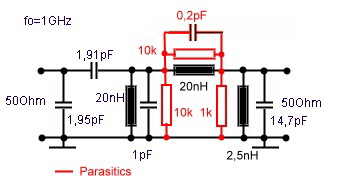

Fig.1 Mixeroutputfilter-circuit

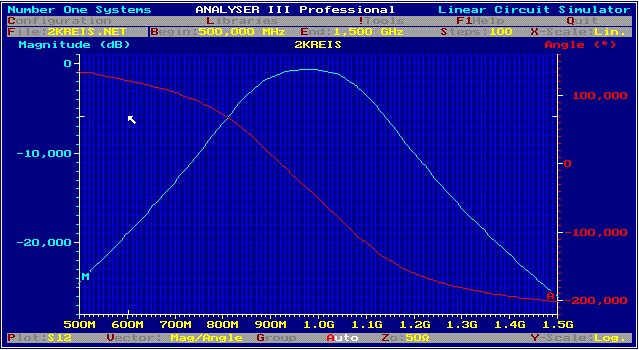

                                                                  Fig.2 S21 of Mixer filter.   Matching values are :S11 and S22 = 12dB.

Retour:                                                                                                                    (Number ONE Linear Circuit Analyser)

A receiver-unversal-polefilter

This filter is an example of  filters having certain frequency poles.This example shows the high increase on rejection outside the band. We use a wave parameter filter from [3] having two resonators at Fo and two poles at frequencies near the band end. As we want high low insertion loss in the band, we add a third resonator at Fo.  This filter is an universal filter to be changed for many purposes. For instance -narrow band -channel filter or high selectivity if filter. Impedance or frequency changing is easy. To change the bandwidth , the poles at  band end must equally changed in percentage to broaden the band. This filter is easy to handle in a CAD-program, the three resonators are always at Fo and the poles can than be adjusted. This allows to build a bandwidth switch-able filter. Fig.1 shows the circuit for Fo =100 Mhz and Fig.2 the transmission S21setting Q=100 . Lower impedance on the input or output can be realized as it is well known , using taping of the first coil.

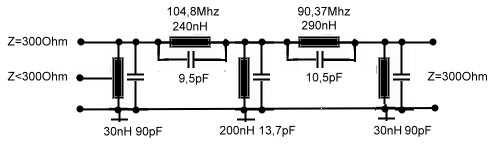

                                                     Fig.1 Wpo2 -high selectivity universal filter

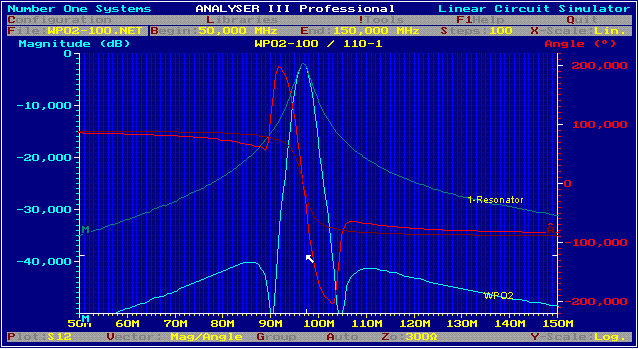

                             Fig.2 wpo2 universal-high selectivity-filter                     (Number ONE Linear Circuit Analyser)

Return:

Noise measurement using a parametric if filter German Patent : DE4009076 C2

To measure the noise produced in a communication system, the bandwidth of the noise measurement device has to be limited over the bandwidth of the system. The noise power must be measured after the filter and the generated noise in the source can be computed from the ENR value:

       Fig:1 Noise measurement in a communication channel

                             Fig.2  Formulas to compute the generated noise

The necessary data’s are: fo=140 MHz; Bandwidth 1dB =+-6 MHz, Bandwidth 3dB =+- 10 MHz  ,  Bandwidth 20dB = +-15 Mhz. The used filter is a parametric filter having the grade of 11. The poles are :   4,1,3,  Grad =11 . A  PCB circuit using fixed air coils is used. To tune the filter, SMD-trimmers have been used .To manufacture a series product a lot of tolerance considerations still has to be made.The circuit up to now is shown in Fig. and the transmission S12 in Fig.4.

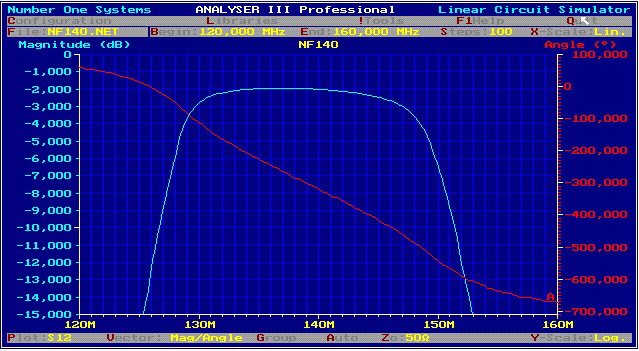

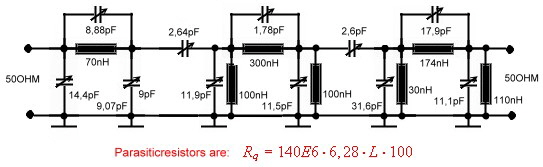

                                                      Fig.3 MHz noise measurement-filter

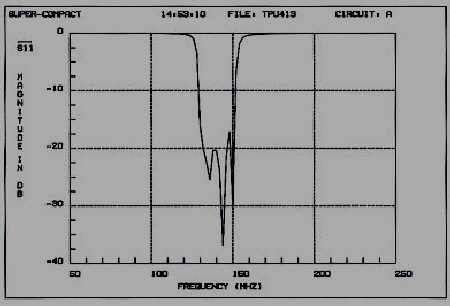

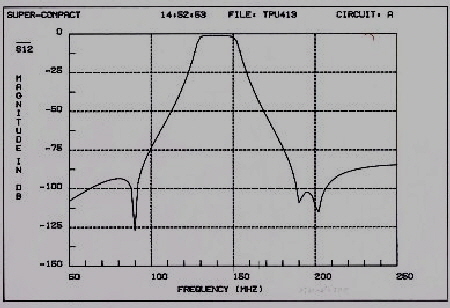

                                        Fig.4 S21; 413-Filter

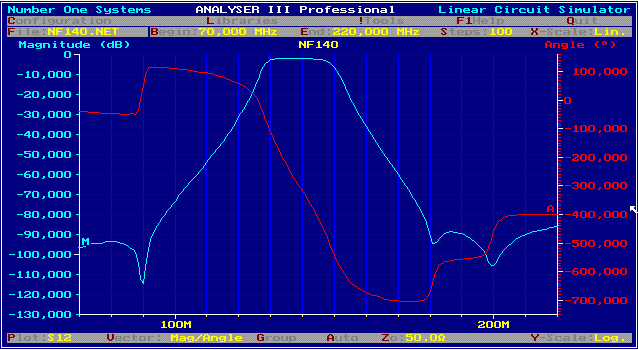

                                           Fig.5 S12; 413-Filter

                                                Fig.6 S22; 413-Filter                                   (Number ONE Linear Circuit Analyser)

Return:

QPSK-Data Filters for digital radio

Today , digital modulated communication channels are everywhere. Ignorant people may think its digital communication, using data jumps from 1 to zero, the  same as digital logic . But this is not the case.We look how the communication  bit’s look like and show how to design lumped RF-data filters for high bit rates. Look at two different digital bit’s, the hard jump and the soft cosines shape jump and its amplitude density. We get this density from a Fourier transformation . Fig.1.

                                                 Fig.1 Amplitude density of data bits

 Fig. 2 shows the graphical results of this power density .The hard data bit produces power  at multiples of  the bit-rate. To avoid data confusion due of this unwanted power, soft square cosines bits are used in digital data communication.

Fig.2 Power density of different bit’s..                                     Fig. 3 Filter specification of digital radio mod-demod filter













Now we look to a classical specification of a filter to change the digital output bits of a QPSK-modulator into a cosines square shape. And look too, to a QPSK- demodulator specification to transform the data bit’s content , back to analog values. Fig.3. We see the shape of a very broadband low pass filter having a little sinx /x over swing before crossing the Nyquist frequency fbit. At this frequency the roll off function is working, which is a cosines square function having a variable steepness n. The demodulator filter is indeed a sinus function, written in cosines form without sin x/x increase. At Fig 4, the equations can be found:

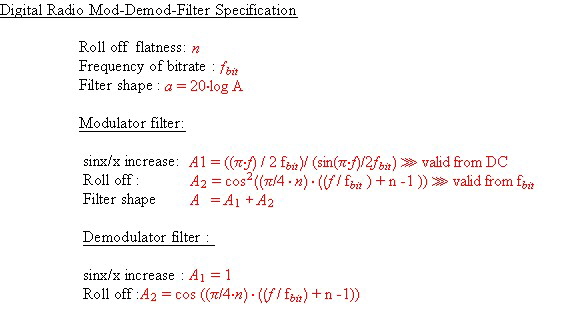

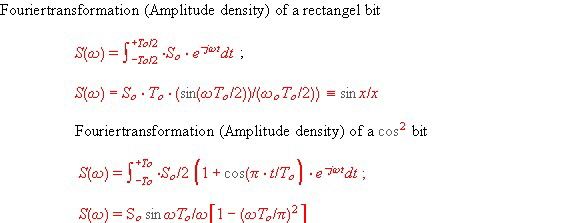

Fig.4 Digital radio mod-demod -filter specification. formulas

 The Filters

Mod and demod filters are both low pass filters, I use the same simple basic filter , it’s a n-pole low pass from a catalogue [3] and select it to match approximately the specification requirements. Now how can we get the cos roll off and the sinx / x increase? We get the roll off, by shaping the poles resonator with a resistor only damping at a certain series resonator frequency .The sinx / x  increase is very easy to get. A little differentiating resistor into the infinite pole capacitor enhances the corner frequency over swing. This filter is much more easier to adjust than an full computed over swing filter without resistors, where all components my change the roll off too. Fig 5 shows one pole of the filter.  Fig.6 Shows  the transmission of such a modulator filter, using 5  poles in series. At the 2 upper frequency s, the poles work without resistors..

Fig.5 Universal data filter pole

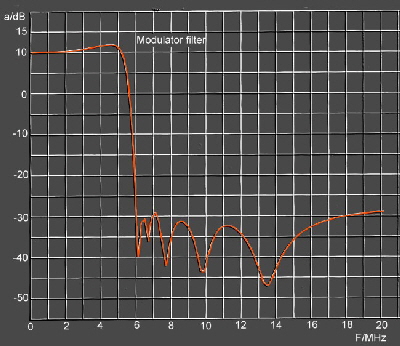

Fig.6 Example of communication modulator filter transmission

Return:

Minimum Coil Parametric 70 MHz If Filter

Parametric filters need less coils than every other filter type. Here is a minimum coil broadband 70 Mhz Parametric Filter The circuit of Fig.1 is the result of  computerized solving of  the H(s) and K(s) equations, of a parametric filter.The components are found in a computer  iteration process to nullify the equation H(s).The Circuit shows the typical C-Input of Parametric filters and has only 5 coils to get a grade of 11. Fig.2 presents the transmission .

Infinit poles = 3.  Zero poles =4. Finite Poles = 2. Grad = 2*2+4+3=11.

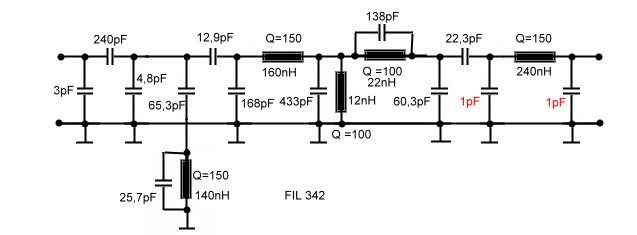

                                       Fig.1 Circuit and values of Fil342

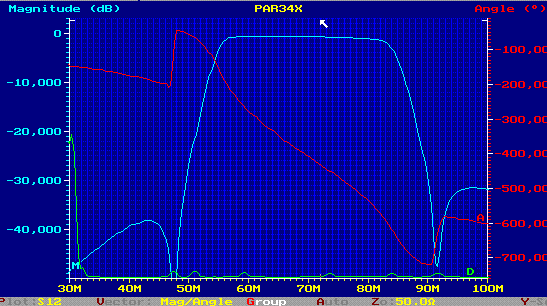

                         Fig.2 Fil.342 Transmission                          (Number ONE Linear Circuit Analyser)

Return:

 IF Parametric-Filter has cos roll off

RF Receivers for digtital data have three main sections, the RF section, including the input front end, the If section and a digital demodulator. As it can bee seen at PQSK-Data Filters for digital radio , the digital demodulator needs a low pass having a very tight specified cos roll off. This low pass, can be simplified, if the already existing IF filter has a cos roll off. . But realizing an IF Filter having this roll off; is not very easy . If we look to the filter catalogues; only very high graded Tschebischeff or Cauer filter can met this specification, but both filter circuits will not work prober at RF frequencies. Beside the specification, the filter to be designed must have a minimum number of coils  having a value greater than 30nH. The here shown filter is a computer designed parametric filter having a grade of 10, see Fig.1. The values of the coils, are big enough to use fixed standard SMD Coils with a Q of >70 at 70 MHz. ( For instance Stettner, Componex or Coilcraft types) To adjust the very tight roll off specification an adjustment is used for the roll off. (R1 and R2). The poles must be adjusted, using SMD trimmers. The adjustment is easy , only the poles must be set to its frequencys. Fig.2  shows the computed  filter transmission and its specification .Matching is S11= S22 =15dB;

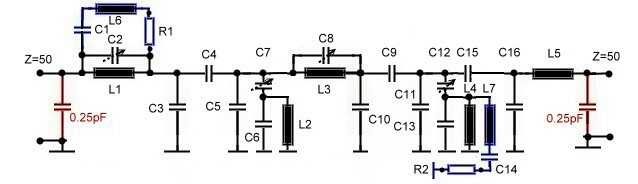

.           Fig.1 If Filter with cos roll off

The values are:

  • C1=4.2pF; C2=53pF; C3=0.5pF; C4= 500pF; C5=42pF; C6=0.5pF; C7=29,6pF; C8=53pF; C9=25pF; C10=4.2pF;C11=16pF; C12=132pF; C13=91pF; C14=40pF; C15=27pF; C16=4.2pF;
  • L1=42nH; L2=378nH; L3=56nH; L4=127nH; L5=200nH; L7=500nH;
  • R1,2=100-300Ohm ;
  • POLES:                    38MHz     48MHz                                   92MHz  106MHz

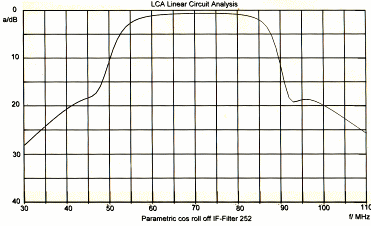

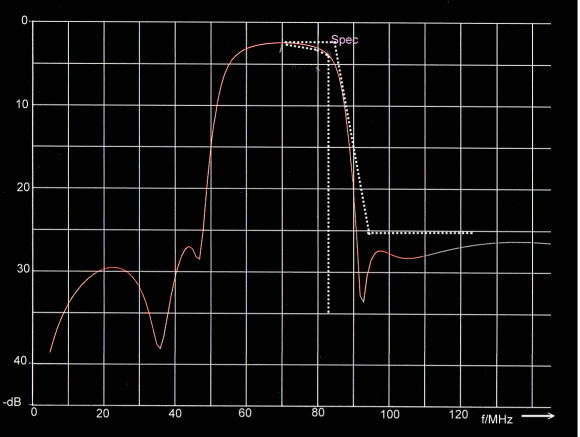

                        Fig.2 Transmission of the cos roll off filter                       LCA Linear Circuit Analysis

Return:

 IF Parametric-Filter has cos roll off for wider specification

RF Receivers for Digital data have three main sections, the RF section, including the input front end, the If section and a digital demodulator. As it can bee seen at PQSK-Data Filters for digital radio , the digital demodulator needs a low pass having a very tight specified cos roll off. This low pass, can be simplified, if the already existing IF filter has a cos roll off. Above, a very complicated filter has been shown, fulfilling a very tight specification. Here a 70 MHz bandpass is shown, having a cosines roll off, to fit in a somewhat wider specification: The electrical  values  fits  SMD components. Adjustment is easy if the two poles are tuned to its frequencies. Fig. 1 shows the the circuit and Fig.2 the transmission.

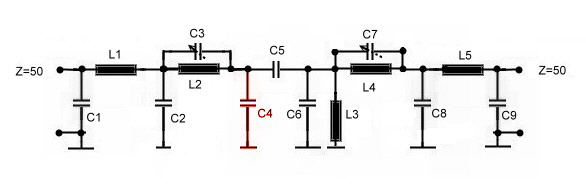

                   Fig.1 Simplified Parametric bandpass having cosines roll off.

The values are:

C1=30pF; C2=28pF; C3=20.4pF; C4=1pF parasitic; C5=13.8pF; C6=5pF; C7=63pF; C8=120pF; C9=83pF; L1=185nH; L2=137nH; L3=185nH; L4=200nH;L5=118nH;

                    Fig.1 Simplified parametric cos roll off band filter

Return:

Classical Butter worth Bandpass is realized with SMD Coils

Classical Radio Band-passes have been realized by means of   magnetic coupled trimmed coils in a metallic housing. A better modern design, is a capacitor coupled filter having small SMD coils used as resonators. Here is an example of a 4 resonator 70 MHz broadband bandpass to be used in a telecommunication data receiver. Fig.1 shows the circuit. As the SMD coils are not trimmed at all, three adjustment SMD capacitors are used to compensate the 5 % delivery tolerances of the coils. Fig 2 shows the S12 transmission at 200 Ohm matching, S11/ 22 is 20 dB. On a PCB, the coils must be placed between small flat metal shields, soldered on the PCB, to prevent magnetic coupling.

 The circuit values are :

  • C1=30pF; C2=10pF ; C3=1,5 -2,5pF, C4=0,8-1,5pF ; C5=1,5 -2,5pF; C6=10pF; C7=47pF;
  • L1 =415nH; L2 =520nH; L3 =470nH; L4=330nH;
  • Z = 200Ohm; Q = 100;
  • Tolerances of capacitors 1%
  • Tolerances of coils 5%

As the  components are very tight selected, adjustment time of the filter is only a few minutes.

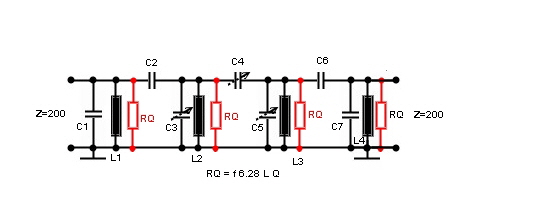

                                      Fig.1         Classic Butter worth bandpass data filter

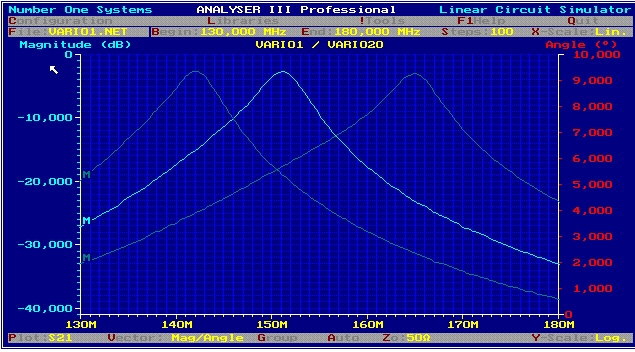

                                                                  Fig.2 Tuned bandpass                    (Number ONE Linear Circuit Analyzer)

The numbered shapes  are : (S12 is matched gain) :

    • #1 is  S12 IF all coil values at +5% .
    • #2 is  S12 IF all coil values at -5% .
    • #3 is S12 of #1 tuned to fo using C3, C4, C5.
    • #4 is S12 of #2 tuned to fo using C3, C4, C5.
    • S22/S11 = 22dB

Return :

Parametric filter matches receiver input

Show IF-filter  The IF- Filter shown above in this site can be transformed using Norton’s transformation, to match input antennas to a RF input-amplifier. To tune this grade 7 filter, only two variable capacitors are necessary.  The matchings are:

  • 50 Ohm antenna to 25 Ohm common base transistor input. The circuit is at Fig. 1 and the transmission S21 at Fig.2
  • High Q Coil on a ferrite antenna having a impedance of 2kOhm to a 100 Ohm Amplifier input. It is the same circuit, but input and output have been changed.

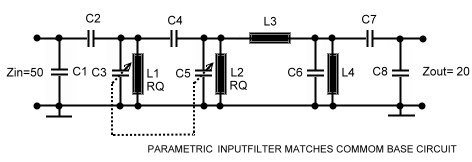

                                     Fig.1, 50 Matching of a 50 antenna to a common base  transistor

The values are: C1=8pF; C2=15pF, C3=27pF; C4=1,5pF; C5=40pF; C6=5pF; C7=40pF;C8=1pF; L1=33nH;L2=33nH;L3=300nH; L4=100nH; (High Q SMD Coilcraft Aircoils)

                                           Fig.2  S21 at frequency tuning . C3 from 20 to 28 pF and synchrony C5 from 30 to 40 pF

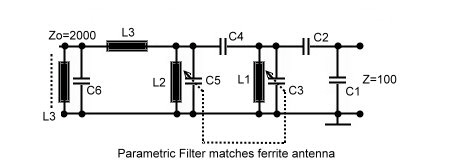

                                                      Fig.3 Matching of a ferrite antenna

The values at  fo = 80 Mhz are: C1=15pF; C2=30pF, C3=1pF; C4=2pF; C5=25pF; C6=25pF; L1=200nH;  L2=160nH; L3=4uH; L4=180nH;  The resonance frequency of L3 must be >3fo, therefore this coil must be realized using a high permeability RF-Ferrite, to need only 3 to 7 turns. Component Values can be scaled by fo1/fo2 to change fo.

Return :2

Parametric Data IF Bandpass has 2 finite poles

Parametric Band-passes with finite poles  are a good choice for broadband data filtering .As an example, a 2 finite pole bandpass has been computed  using a FORTRAN Program . The circuit was  found by means of nullifying the roots with circuit elements in an interactive process. The program finds many solution circuits which all solves the roots.The designer has to decide which circuit has to be used. Fig 1 shows the chosen circuit.The output impedance is set to the 90 Ohm to optimize  PCB wiring. Fig.2 shows the computed S21 transmission values for broad and narrow-band. If the infinite pole frequencies are changed using C2 and C6 synchronously, the bandwidth may be changed up to 30 % .

                                 Fig.1 Broadband parametric-bandpass realized with 2 infinite Poles

The Component values are:

  • C1=300pF;C2=57pF; C3=35pF; C4=15PF;C5=130pF;C6=90pF; C7=18pF;
  • L1=230nH; L2=350nH; L3=60nH; L4=30nH;
  • Q1,2,3,4 = 120;

                Fig.2  Transmission of Broadband parametric bandpass                       (Number ONE Linear Circuit Analyzer)

Return:



QPSK-transmitter low-pass with groups delay compensation

Here is  an example of the application of  a run time equalizer application  to compensate groups run time in a digital communication modem. The groups runtime which will  be compensated is the delay of a low-pass in a QPSK transmitter  modulator , having a sinx/ x part , befor the roll off frequency. This low-pass is shaping the bits  but it should not delay it. Fig.1 shows the transfer S21 of the filter. We see at 5Mhz a sinx/x increase of 0.5dB followed by a very steep roll off. The phase of the  combination of sinx/x increase and sharp roll off, produces a lot of groups run time which must be compensated . The run time behavior of of the low-pass with and without groups run time  compensation, shows fig.2. The circuit of the low-pass has 5 sections  (Fig.3),   2 groups run time equalizer, and 2 low-pass poles and a sin x/x circuit using the combination of series and  parallel resonator driven by means of a RF Op-Amp. The equalizers are standard 45 degree circuits , explained at :

Go to run time equalizer circuits:

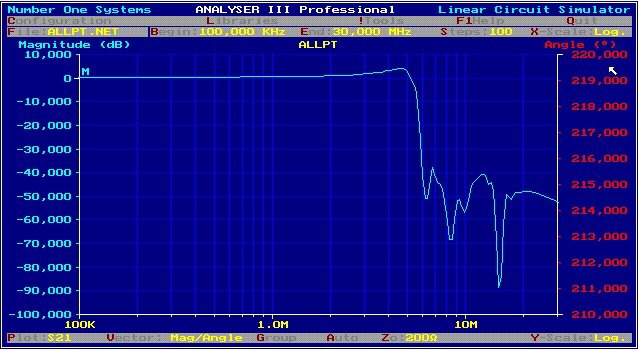

    Fig.1 Transfer of QPSK transmitter lowpass

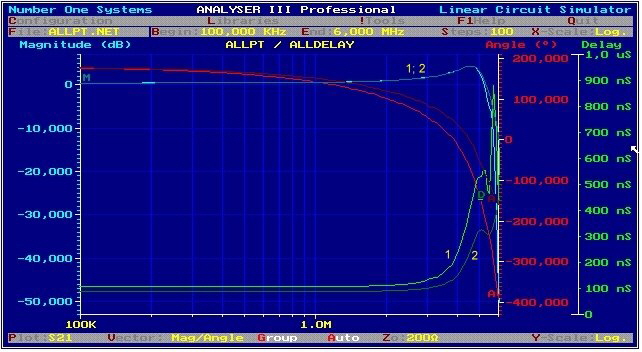

    Fig.2 Groups run time os QPSK lowpass, 1= without equalizer, 2= with equalizer

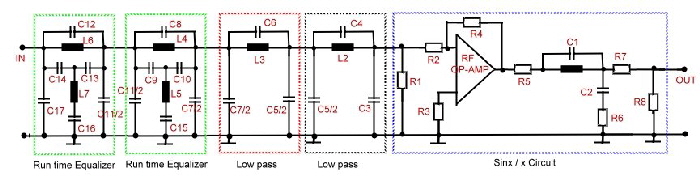

    Fig.3 Circuit of QPSK transmitter lowpass

Return:

                  Broad-band IF-filter realized by means of  single resonators between FET’s or tubes

The broadband filters shown above, are the outcome of complicated computer filter software including NORTON  transformation.  Here is a  very simple method to realize an other type of broadband band-filter.  Such simple filters have been  used in the earlier years of electronics. The only thing we need for calculation is a pocket calculator. Fig. 1 shows the basic block diagram of the filter. We see between two amplifiers, which have a very high  input and output resistance,  one detuned L C resonator.  This amplifier-resonator circuit  is connected in series n  times and it is assumed, that Zi and Zo are very high. The amplifier can  be a FET or a Tube. If the impedances are low, they can be transformed, using coil-taps. The gain must be stable fixed, using a feedback circuit.

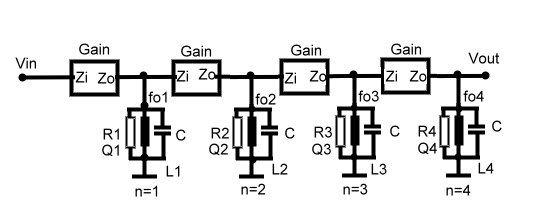

                                                      Fig.1 Simple broadband amplifier

First we define the parameters :

  • Gain1=Gain2= Gain3= Gain4=Gain,
  • Zin = <  infinite; Zout = < infinite,
  • C1=C2=C3=C4=C,
  • B =  summing  voltage gain factor at 0.7, bandwidth ,
  • Resonant frequencies = fo1, fo2, fo3, fo4,
  •   dv = detuning of resonators,
  •   dv = ; dv =~ 2delta(f)/fo;
  •   dv(1,2) = detuning of resonator 1 and 2,
  •   dv(3,4) = detuning of resonator 3 and 4,
  •   dv(5) = detuning=0,
  •   f(0) = mittfrequency,
  •   z = number of resonators,
  •   z  = can be even or odd,
  •   z  = 4.  or 5. (or other numbers),
  •   n = number of resonator,
  •   phf = phase factor,
  •   phf = 90/z,

 In case of z = 4, the resonator values for a butter-worth shaped filter can be found using the following equations:

  • dv(1,2)= 1/Q(2,4) = B sin 22.5/f(0),  (deg)
  • dv(3,4)= 1(Q(3,4) = B cos 22.5/f(0),  (deg)
  • midd-frequency f(1) =  f(0) + dv(1,2) f(0),
  • midd-frequency f(2) =  f(0) - dv(1,2)  f(0),
  • midd-frequency f(3) =  f(0) + dv(3,4) f(0),
  • midd-frequency f(4) =  f(0) - dv(3,4)  f(0),
  • resonant frequencies must be adjusted using tunable Inductors,
  • Q(1) =1/dv(1,2),
  • Q(2) =1/dv(1,2),
  • Q(3) =1/dv(3,4),
  • Q(4) =1/dv(3,4),
  • The different Q values can be realized by using ex-tern resistors at the resonators.
  • In case of Z=5 we have one more resonator at f(0),
  • The total gain is :
  • S = Gain slope of one amplifier (can be computed from  a tube, or the amplifiers quadrupole data),),

The same filter can be constructed with tschebischev behavior if the following parameters are used:

  • w = Vmax/Vmin = transmission ripple inside the bandwidth,
  • n = number of resonators,
  • dvb =detuning for factor 0.7 bandwith.
  • detuning: ,
  • Resonator quality: ,

Fig.1 shows, how the single resonators are added together.

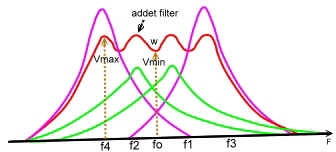

 Fig.1 Addition of resonator shapes









Return:



                                                The classical radio bandpass filter.

This article is written for tube radio fans, for understanding the classical radio  LC, I F-band filter, which are not used any more in todays radios. This bandpass, was realized , using two high Q Coils as of part of two resonators, which are coupled using the magnetic field of the coils. Fig.1 shows the mechanical arrangement. The coils have been placed on two small plastic tubes with ferrite adjustment screws. Turning this screws, the mitt-frequency of the resonators can be changed.  The distance between the coils determines  the bandwidth of the bandpass. This two resonators are connected between tube amplifiers as fig.2 shows.

                                                            Fig.1 mechanical filter design.

Fig.2 circuit of classical radio bandpass

The following parameters are valid:

  • Mitt-Frequency, fo is the frequency in the middle of the passband.
  • Bandwidth , B, is defined between  the points of  1/SQR( 2) = 0.7 of the output voltage
  • Coil quality , Q1,Q2, is defined as Q= Ro/(6.28fo)
  • Resonance resistor Ro is the paralleled sum of the real loss resistances of coil, capacitor, and adjacent tube resistors.
  • Coupling, k = grade of coupling between the coils.
  • in case of Q1=Q2 and  k=1/Q,  k is called kc = critical coupling.
  • in case of  over-critical coupling we get two ripple peaks in the pass band, the difference between the peaks  is h;
  • Fig.3 shows the influence of the coupling to the filter ripple.
  • detuning of resonators: v = 2delta(f)/fo;  deviation from resonator frequency fo=1/SQR(6.28 L C)
  • ripple at Q1=Q2  w = Vmax/Vo, w= (1+(QQkk)/2kQ;

                                              The main formulas are:

  • Filter response:



  • midd-frequency gain:



  • Selectivity at Q1=Q2; Qk=1  :
  • Transitional coupling :
  • Over transitional coupling:
  • Untertransitional coupling:



  • Bandwidth at over critical coupling:
  • Filter response phase:
  • In band ripple:

 At Fig.3, 460 kHz Radio IF- Bandpass curves depending on different coupling factors are shown.The stop band attenuation at 9kHz must be as high as possible!

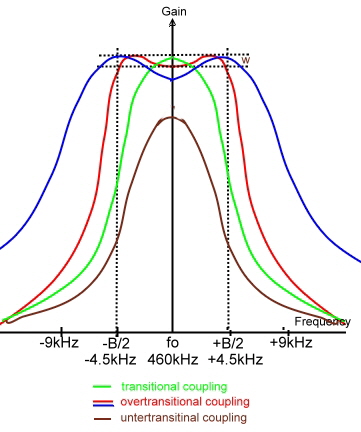

 Fig.3  Radio IF bandpass curves.















Return:

                                                        Lumped coil quality Q

Computing  of an electronics filter is one thing, realizing the hardware, is another, because of coils quality and self-resonance. Fig.1 shows this coil losses.

Before build up the hardware, the filter should be tested with the coil-datas and its parasitic values,  in a CAD Program.
The self resonant capacity and the Q-values, can be taken from the data sheets. Here is an overview of possible Q -Values of different kind of Coils versus the frequency. Fig.2

The losses have the following formulas:

  •   <<< Coil quality:
  •   <<< Angel of loss :
  •   <<< Parasitic C:

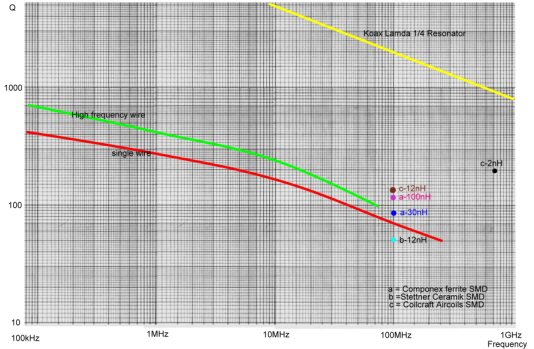

Fig.2 Coil-Q versus frequency

  • ______The red line shows the maximum possible Q for coils made out of single wire windings on ferrite.
  • _______The green line shows the maximum possible Q for coils made out of RF litz (stranded) wire windings on ferrite.
  • For red and green coils, the optimum ferrite should be used.
  • _________The yellow line shows the maximum possible Q for lambda /4 resonators.
  • The single points are                                                                                                                                                  examples of SMD coils.

We see in the frequency range between 100 MHz and 2 GHz, only air coils and coax resonators have  high Q values. . As coaxial resonators  with high Q values are very bulky, the only solutions are air coils especially SMD air coils. That is, the filter tuning must be made with capacitors.

Return:

140 MHz Broadband Parametric-IF Filter for a Digital Modem. German Patent DE 4009075 C2

A 140 MHz Parametric-Bandpass Filter for a Receiver Data Modem has been developed. The Input matched Filter circuit has been found, by using “ Saals”* Formulas in a Fortran Program for Zin =50Ohm,. The output of 1.5 Ohm then was matched using  a “ Norton”  transforming Software. The testing has been made using “Compact “ linear analysis. *SAAL, “THE CATALOG OF NORMALIZED LOW  PASS FILTERS”;

  • Circuit: Fig.1
  • Gain, S21 : Fig.2
  • Input, Output, S11,S22: Fig.3

FILPATCIR

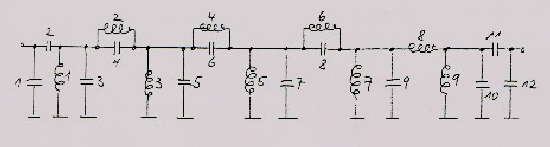

Fig 1 Circuit of parametric MHz Bandpass

Parametric-Filter-Components are:

  • L1=83,7;  L 2=419;   L 3 =70;  L 4=200;  L 5= 70;  L6= 519 ;  L7=70 ;  L8=500 ;  L9=77,8 nH
  • C1=14,4 ; C2=12 ; C3=8,9;  C4=0.35;  C5=22,5; C6=3,88;  C7=18,5;  C8=4,8;  C9=19,1;pF
  • C10=77,8;  C11=12;   C12=14,3 pF
FILPATAMPL
Fig.2 Gain of parametric MHz Bandpass, ao=1,8dB.
FILPATREFLEX

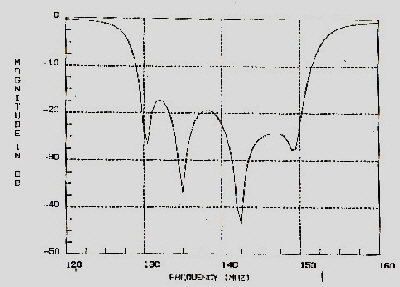

Fig.3 Input-output-reflection of parametric 140 MHz Bandpass.

Simplification of the 140 MHz Broadband Parametric-IF Filter for a Digital Modem.

 German Patent DE 4009076 C2

If C10, C12, L8 of Fig.1 are set to 0, C11and L9 to infinite, the Norton Transforming program tries to find positiv finite other values. After working a few hours, with norton, we get a simpler circuit. Fig.4 . The out of band rejection is even greater. Fig.5.

filter10cir


filter10-nor

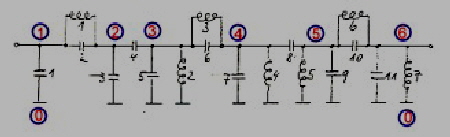

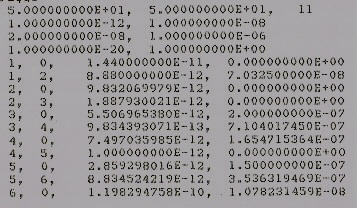

                                 Fig.4 Simplified 140 MHz parametric bandpass circuit and values

filter-10s21

                                        Fig.5 S21, S12 of the simplified parametric 140 MHz bandpass

filter-10s22

                                         Fig.6 S11,S22, of the simplified parametric 140 MHz Bandpass

Practical realisation of the parametric filter

As the capacitor data shoes, all capacitor values to ground have  been made with the Norton-programm relatively large. Therefore, the Filter-PCB has a full grounding layer. The actual C values than must be smaller than the parasitic values from the board. As Fig 4 shoes, the filter has a dimension of 6 cm * 2cm. To get the ground really cold I have soldered two angel plates along the board at the ground side. To prevent parasitic inductance the string from input to output must be made very broad. The hard ware was tested an I got nearly the computed values.

Fig. 7 Test-PCB of the parametric Bandpass filter, (about real) size.

filter5

Return :
